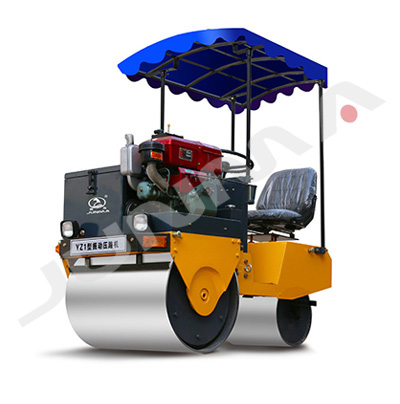

Function analysis of double steel wheel vibratory roller

Double steel roller has double steel wheels, high frequency; Unusual compaction efficiency; Suitable for roads and other large paving works; The working weight is between 7 and 15 tons.

  Automatic vibration starting system of double steel wheel vibratory roller: patented vibration step meter; Unique sprinkler system.

Operation weight l :11300 kg

Steel wheel width :2000 mm

Vibration frequency :42HZ/ 63.3Hz

Water spraying system of vibratory roller with double steel wheels

The monomer water tank design makes it more convenient to add water, and the built-in water tank makes the operator's working vision not blocked.

Unique double pump interactive water spraying system, triple water filtration, non-polar adjustable spraying setting, prolong service life, save water consumption.

Vibration system of double steel wheel vibratory roller

Caterpillar's patented pod eccentric counterweight features high amplitudes and frequencies that greatly improve compaction efficiency and reduce maintenance time with 3,000 working hours of extra long oil change intervals

Five amplitude, double frequency double amplitude and double frequency four amplitude vibration system selection, to provide a variety of machine applications

ASC automatic speed control system

ASC automatic speed control system, can preset machine working speed and vibration and impact interval, so that the machine keep uniform speed and consistent vibration and impact interval, to achieve good compaction effect

Caterpillar 3054C engine

3054C four cylinder water cooled rotary turbocharged diesel engine, good power performance and high reliability, in line with the SECOND stage of American and European emissions requirements

The engine hydraulic system is equipped with POR pressure overshoot device to greatly reduce fuel consumption.

Ergonomic design operation platform

Wide multi-position platform design with 9 rotating and 7 sliding positions maximizes the operator's field of vision.

Frame structure design

50/50 front and rear steel wheel bending fork support center hinged structure, making the machine more flexible.

The steel wheel bending fork support structure improves the passing distance of the wheel side, which is convenient for the edge compaction of the curb and obstacles.

The operation platform is located in the center of the machine so that the operator can observe the surface and edge of the steel wheel better and the compaction is more standard.

Easy to maintenance

The engine and hydraulic system are approached by the rear cover of the machine which is vertically opened and located at the rear of the machine away from the operating platform for convenient daily maintenance

The vibration unit seal actually makes the replacement cycle of the vibration shaft bearing oil up to 3 years or 3000 working hours
