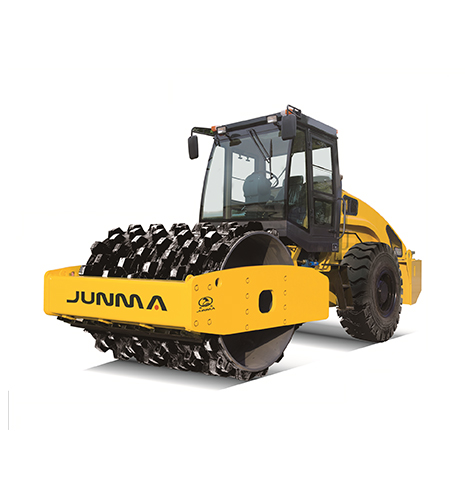

JM610/JM612/JM614

SINGLE DRUM VIBRATORY ROLLER

Applications

Compacting the foundation of large infrastructure projects, such as highway, dam, railway, airport, also non-cohesive and semi-cohesive materials, such as sand, gravel, macadam, rock fill.

Main Features

1.Equipped with 4-cylinder supercharged Weichai Diesel Engine with power reserve, high efficiency, low fuel consumption.

2.Mechanical drive, three speed driving gear.

3. Hydraulic vibration, electronically controlled starting of vibration, with great exciting force and high compacting efficiency.

3.Hydraulic steering, articulated frame with flexible operation.

4.Transmission with synchronizer, easy to shift gear.

5.Gas-assisted hydraulic clamp disc service brake, drum mechanical parking brake, safe and reliable

6.Rear engine cover can be turned up for big angle for convenient maintenance.

7.Equipped with famous brand hydraulic components with reliable performance.

8.Tires with different tread patterns are optional.

9.Standard equipped with cabin, air conditioner is for your choice.

Advantages

1.Easy maintenance and low maintenance cost.

2. Transmission with synchronizer, easy to shift gear.

3. Large excitation force, deep compaction impact depth, high work efficiency.

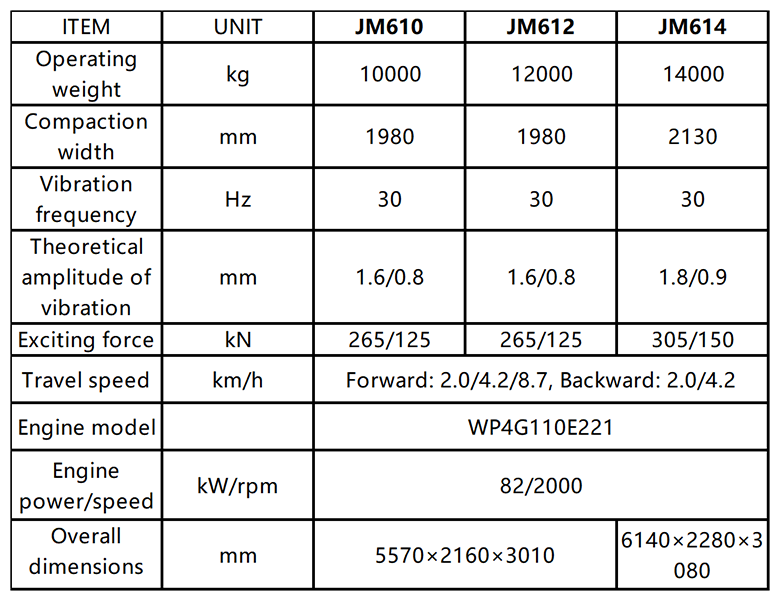

Technical Data
