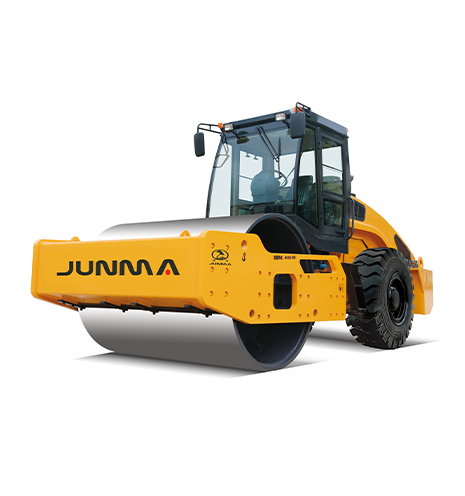

JM616/JM618/JM620/JM622

SINGLE DRUM VIBRATORY ROLLER

Applications

Compacting the foundation of large infrastructure projects, such as highway, dam, railway, airport, also non-cohesive and semi-cohesive materials, such as sand, gravel, macadam, rock fill.

Main Features

1.Equipped with 4-cylinder supercharged Weichai Diesel Engine with power reserve, high efficiency, low fuel consumption.

2.Mechanical drive, three speed driving gear.

3. Hydraulic vibration, electronically controlled starting of vibration, with great exciting force and high compacting efficiency.

3.Hydraulic steering, articulated frame with flexible operation.

4.Transmission with synchronizer, easy to shift gear.

5.Gas-assisted hydraulic clamp disc service brake, drum mechanical parking brake, safe and reliable

6.Rear engine cover can be turned up for big angle for convenient maintenance.

7.Equipped with famous brand hydraulic components with reliable performance.

8.Tires with different tread patterns are optional.

9.Standard equipped with cabin, air conditioner is for your choice.

10.Removable Sheep foot is optional.

Advantages

1. Weichai Diesel Engine with power reserve, high efficiency, low fuel consumption.

2. Transmission with synchronizer, easy to shift gear.

3. Customer can choose SKF vibration bearings, with large load capacity, and high limit speed.

4. Vibration exciter of vibration wheel is with four-point support structure, unique oil scraping and lubrication device, ensure that the vibrating bearing is fully lubricated and has a long life

5. Large excitation force, deep compaction impact depth, high work efficiency.

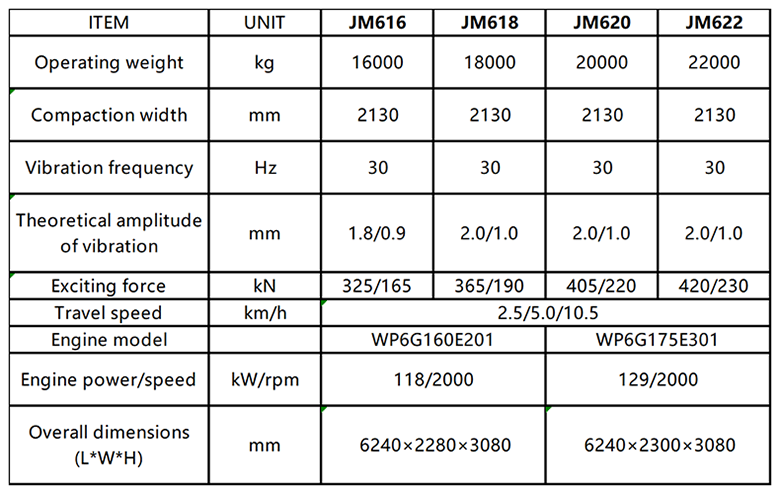

Technical Data
